Olympus OM-D E-M1 Mark II (Body Only)




Specification:

  1. Sensor Effective Resolution / Type
    20.4 Megapixel Live MOS
  2. Processor
    TruePic™ VIII Dual Quad Core Processor
  3. Focusing System
    Dual F.A.S.T. AF (Contrast & Phase Detection AF) 121 Point (All Cross Type) On-Chip Phase Detection
  4. Image Stabilization System
    5-Axis In Body Image Stabilization
  5. Viewfinder
    2.36M dot LCD Electronic Viewfinder
  6. Rear Monitor
    3.0" Vari-Angle Touch LCD
  7. Weatherproof
    Dust, Splash and Freezeproof
  8. Sequential Shooting Speed
    15fps [H] mode 10fps [L] mode mechanical shutter
    60fps [H] mode 18fps [L] mode silent electronic shutter
  9. Flash
    Bundled FL-LM3 (dust & splash-proof)
  10. Special Features
    4k Video Capture (30/25/24 fps)
    PRO Capture Lag-Free Electronic Shutter Mode
    In-camera Focus Stacking
    Dual SD Card Slots

Sensor / Dust Reduction

  1. Sensor Type
    4/3" Live MOS Sensor
  2. Effective Pixels
    20.4 million
  3. Total Pixels
    21.8 million
  4. Aspect Ratio & Area
    4:3 / 17.4 x 13.0mm
  5. Dust Reduction
    Super Sonic Wave Filter

Processor

  1. Processor Type
    TruePic™ VIII

Focusing System

  1. AF System Type
    High-speed imager AF: Imager phase detection AF and imager contrast AF (active AF automatically selected by camera; when a Micro Four Thirds lens is attached, imager phase detection AF is always selected)
  2. Focus Modes
    Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus (MF) / S-AF + MF / AF tracking (C-AF + TR) / Preset MF*1
    *1 Distance setting values are rough estimates and not compatible lens except the AF lens.
  3. Full Time AF
    Not Available
  4. AF Limiter
    Available (Fn button can be assigned to On/Off; can save 3 settings) *Distance setting values are rough estimates.
  5. AF Performance
    C-AF lock (5 steps) , AF scanner (3 types)
  6. Magnified Frame
    3x , 5x , 7x , 10x , 14x
    *Autofocusing is possible in the magnified frame; can be assigned to button to turn magnify frame AF on and to activate magnification; touch icon on monitor to turn off; enables selection of AF point from over 800.
  7. Face Detection AF / Eye Detection
    Available
    Eye Detection AF mode : off / nearer-eye priority / right-eye priority / left-eye priority
  8. Focusing Points / Focusing Points Selection Mode
    121-point cross-type phase detection AF and 121-point contrast AF / All target, group target (9-area or 5-area), single target
  9. AF Illuminator
    Available
  10. AF Targeting Pad
    Available (activate / deactivate with double tap on rear monitor)
  11. Manual Focus Assist* Customize Function
    Focus ring rotation activates Live View image magnification and/or focus peaking when in S-AF+MF or MF mode
  12. Peaking Function
    Activate with Fn button or focus ring
    Change peaking settings using the Info button
    Color selection: white, black, red, yellow
    Intensity selection: high, normal, low
    Back light effect: on, off

Image Stabilization

  1. System Type
    Built-in 5-axis* sensor-shift image stabilization for movie and still photos
    *yaw/pitch/roll/vertical shift/horizontal shift
  2. Modes
    4 modes (S-IS AUTO, S-IS1, S-IS2, S-IS3), OFF
  3. 5-Axis Sync IS
    Available*
    *When using M.Zuiko Digital lenses equipped with image stabilization
  4. Live View Image Stabilization
    Activation by half-pressing shutter button or enlarging view
  5. Focal Length Setting
    11 settings: 10 programmable settings (10 lenses), 1 open setting
  6. IS For Live View Image
    Activation by half-pressing shutter button or enlarging view
  7. Stabilization Performance
    5.5 EV*
    *Based on CIPA measurement conditions.
     When using M.Zuiko Digital ED 12-40mm f/2.8 PRO (focal length = 40mm (35mm equivalent: 80mm))
  8. Lens IS Priority
    Available

Shutter / Sequential Shooting

  1. Shutter Type
    Computerized focal-plane, high-speed mechanical shutter Silent electronic shutter
  2. Shutter Speed
    Mechanical Shutter: 1/8000 - 60 sec. (1/3, 1/2, 1 EV steps selectable)
    Electronic Shutter (Silent Mode): 1/32000 - 60 sec
    Bulb / Time: default setting 8 min. (1/2/4/8/15/20/25/30 min. selectable)
  3. Sequential Shooting Maximum Speed
    [Sequential shooting H] approx. 15 fps with selectable 10-15 fps
    [Sequential shooting L] approx. 10 fps with selectable 1-10 fps
    [Anti-shock sequential shooting L] approx. 8.5 fps with selectable 1-8 fps
    [Silent sequential shooting H] approx. 60 fps with selectable 15, 20, 30, 60 fps
    [Silent sequential shooting L] approx. 18 fps with selectable 1-10, 15, 18 fps
    [Pro Capture H] approx. 60 fps with selectable 15, 20, 30, 60 fps
    [Pro Capture L] approx. 18 fps with selectable 1-10, 15, 18 fps
    *When using the M.ZUIKO DIGITAL ED 12-40mm f/2.8 PRO
    *Maximum sequential shooting speed may be affected by several factors including lens used, brightness, aperture, shutter speed, and ISO setting.
    *When in Pro Capture mode, slower shutter speeds and flash can not be used。
    *When ISO is 8000 or above, 30 fps becomes the maximum sequential shooting speed, and the actual shooting speed may become slower than the set shooting speed by a few frames per second. When using ISO Bracketing, performance will be affected at ISO 2000 or above.
    *Focus and exposure are fixed at the values of the first shot when using sequential shooting H.
    *Maximum sequential shooting speed is 8.5 fps for anti-shock sequential shooting L, even when set to 9 or 10 fps.
  4. Max Recordable Pictures in Sequential Shooting
    [Sequential shooting H 15fps] RAW: Max. 84 frames, JPEG (LN): Max. 117 frames
    [Sequential shooting L 10fps] RAW: Max. 148 frames, JPEG (LN): Until card is full
    [Silent sequential shooting H 60fps] RAW: Max. 48 frames, JPEG (LN): Max. 48 frames
    [Silent sequential shooting L 18fps] RAW: Max. 77 frames, JPEG (LN): Max. 105 frames
    *When using the M.Zuiko Digital ED 12-40mm F2.8 PRO and the Toshiba SDXU-B032G memory card with standard card setting in slot 1.
  5. Self Timer
    Operation time: 12 sec., 2 sec.,custom (Waiting time 1-30sec.,Shooting interval 0.5/1/2/3sec.,Number of shots 1-10

Viewfinder/Monitor

  1. Finder Type
    Eye-level electronic viewfinder, approx. 2.36M dots
  2. Field of View / Viewfinder Magnification
    Approx. 100% / Approx. 1.30x*1 - 1.48x*2 (-1m-1, 50mm lens, Infinity)
    *1: Finder Style 1, 2 (aspect ratio 4:3) *2: Finder Style 3 (aspect ratio 4:3)
  3. Eye Point / Diopter Adjustment Range
    Approx. 21mm (-1m-1, Distance from rear lens surface) / -4 ~ +2m-1
  4. Preview
    Live View preview with depth of field preview lock
  5. Display Grid
    Off / normal grid / trichotomy /golden grid / scale / diagonal / movie grid
    *grid color is selectable
  6. Level Gauge
    2-axis (horizontal / vertical) level gauge
  7. One Touch Tele-Converter
    Available (2x)
  8. Finder Style
    3 styles
  9. Brightness / Color Temp Control
    Adaptive brightness technology (EVF Auto Luminance) / ±7 level manual brightness control /±7 level manual color temperature control
  10. S-OVF (Simulated OVF)
    Expands the Live View dynamic range. *Available in the EVF when in P, A, S and M modes. Art filter, WB and exposure are not reflected in EVF.
  11. Eyecup
    Optional eyecup EP-13 available
  12. Rear Monitor Size
    3.0-inch vari-angle monitor* *Approx.1037k dots (3:2), electrostatic capacitance touch panel
  13. Touch Control
    Shutter release, magnification, AF area selection, AF area size adjustment, AF touch pad, frame forward/backward, magnified playback, Live Guide, Super Control Panel, Wi-Fi connection, movie controls, movie effects, movie teleconverter , selfie controls (shutter release, e-Portrait, custom self timer)
  14. Tilting Capability
    With (mirror display when monitor is in self portrait position)
  15. Brightness / Color Temp Control (Rear Monitor)
    ±7 levels / ±7 levels
  16. Color Tone Select
    Vivid / Natural
  17. Live View
    Approx. 100% field of view, exposure compensation preview, WB adjustment preview, gradation preview, face detection preview (up to 8 faces), grid line, magnification display (x3/x5/x7/x10/x14),
    Display modes: Standard, Histogram, Highlight & Shadow, Level Gauge, Off (Image Only)
  18. Field of View
    100%
  19. Display Mode
    Standard, Histogram, Highlight & Shadow, Level Gauge, Off (Image Only)
  20. Magnification Display
    x3/x5/x7/x10/x14
  21. Monitor Information
    Aperture value, Shutter speed, Auto Bracket, AE Lock, AF mode, IS, Shooting Mode, Battery %, Custom Set, Internal Temperature Warning, Face / Eye Detection, Histogram, Number of storable still pictures, Record mode, ISO, Sequential shooting, Self-timer, White Balance, Metering Mode, AF confirmation, Exposure Compensation Value, Spot metering Area Flash Mode, Flash Status, Flash intensity Control, Super FP, Focal length, Tone control, Eye-Fi condition, Digital teleconverter
  22. Display of Face Detection
    Max 8 frames of face detection can be displayed.

Exposure Control / Flash

  1. Metering System
    Digital ESP metering (324-area multi pattern metering), center-weighted average metering, spot metering*, spot metering with highlight control, spot metering with shadow control *Also available AF target spot metering
  2. Metering Range
    EV -2 - 20 (using 17mm f2.8, ISO 100)
  3. Exposure Mode / Shooting Mode
    i Auto (Live Guide can be used) , P: program AE (program shift can be performed),
    A: aperture priority AE
    S: Shutter priority AE
    M: Manual (Live Bulb, Live Time and Live Composite are available)
    Custom 1,2,3
    Art Filter
    Underwater wide/Underwater macro (to be assigned to the Fn1 button)
  4. Scene Select AE
    No
  5. ISO Sensitivity
    AUTO ISO (default) : LOW (approx.64) ‐ 6400 with customizable upper limit (200 - 6400)
    Manual ISO : LOW (approx.64), 200 - 25600 (adjustable in 1/3 or 1 EV steps)
  6. Exposure Compensation
    ±5 EV, adjustable by 1/3, 1/2 or 1 EV steps When shooting in HDR or in video, only adjustable up to ±3 EV steps Live View only reflects up to ±3 EV steps
  7. AE Lock
    Locks with a half-press of the shutter button , AEL/AFL button(can be set to Fn button as well)
  8. Noise Filter at High ISO Setting
    Off, Low, Standard, High
  9. Noise Reduction at Slow Shutter Speed
    Off, On, Auto On : effective when shutter speed is slower than 1 sec.
    Auto : effective when shutter speed is slower than 4 sec. (at ISO 200 or higher) or 8 sec. (at lower than ISO200)
  10. Flash Intensity Control Mode
    TTL Auto, Auto*, Manual, Super FP*(FP-TTL AUTO, FP-MANUAL)
    * Available on the external flash
  11. Bundled Flash
    FL-LM3(dustproof and splashproof flash)
     GN=9.1(ISO100・m)/ GN=12.9(ISO200・m)
     Bounce Capability (up and down:45, 60, 75, 90 degree / left and right 30, 60, 90, 120, 150, 180 degree)
    *Powered by the camera
  12. Flash Mode
    Redeye, Fill-in, Flash Off, Red-eye Slow sync.(1st curtain), Slow sync.(1st curtain), Slow sync.(2nd curtain), Manual(1/1(FULL)~1/64)
  13. Synchronization Speed
    1/250 sec.
    *When using Super FP: 1/125-1/8000 sec.
    *When using electronic shutter: 1/50 sec. up to ISO6400, 1/20 sec. for ISO 8000 and higher, and 1/20 sec. for ISO bracketing
  14. Flash Intensity Control
    Up to ±3 EV in 1/3, 1/2, 1 EV steps selectable
  15. Compatible External Flash
    FL-50R, FL-36R, FL-20, FL-14, FL-300R, FL-600R, FL-900R, STF-8
  16. Wireless Flash Control
    Wireless flash transmission channel settings enable selection of the flash/no flash for groups of multiple flash units. In addition, it allows TTL auto, auto and manual models to be set; offers a bounce and swivel head; and flash coverage is automatically adjusted in several steps to correspond to the image area when zooming.
  17. Wireless Flash Control Method
    Triggered and controlled by Olympus Wireless RC Flash system compatible flashes: included FL-LM3 or separately available FL-600R and FL-900R , STF-8
  18. Wireless Flash Intensity Control Mode
    TTL Auto, Auto, Manual, FP-TTL-AUTO, FP-MANUAL
  19. Channel No.
    4 channels
  20. Group No.
    4 groups (External flash 3 groups + commander flash)

Memory / Image Recording (File Format)

  1. Compatible Memory
    SD, SDHC*1, SDXC*1, Eye-Fi Card compatible*2
    *1 Slot1:UHS-I,II compatible , Slot2:UHS-I compatible.
    *2 Not compatible with Endless Memory.
  2. Recording Format
    DCF2.0, Exif2.3
  3. File Format
    RAW (12-bit lossless compression), JPEG, RAW+JPEG
  4. Recording Image Size
    [RAW] 5184 x 3888 pixels [JPEG] 5184 x 3888 pixels - 1024 x 768 pixels
  5. File Size
    [RAW] 5184 x 3888 pixels
    [JPEG] 5184 x 3888 pixels - 1024 x 768 pixels
  6. Dual Card Slot Settings
    Standard, Auto Switch, Dual Independent, Dual Same *When two cards are inserted, card to be saved on to or to be viewed can be designated.
  7. Folder Creation and Selection
    Available
  8. Copy
    Copy single file, copy multiple files, copy all *When copied, the new file will be given a different name from that of the original file.

White Balance / Color Mode

  1. White Balance Mode
    Auto WB, 7 Preset WBs, 4 Capture WBs, Custom WB(Kelvin setting)
  2. White Balance Compensation*
    ±7 steps along A-B / G-M axis * Except for Custom WB
  3. Preset White Balance
    7 preset WBs (3000K - 7500K) - Sunny(5300K), Shadow(7500K), Cloudy(6000K), Incandescent(3000K), Fluorescent(4000K), Underwater, WB Flash(5500K)
  4. CWB (Kelvin Setting)
    2000 - 14000K
  5. Capture White Balance
    4 custom settings can be registered
  6. Color Mode
    sRGB, Adobe RGB

Bracketing / HDR

  1. Exposure Bracketing
    2, 3 or 5 frames in 0.3/0.7/1.0EV steps selectable, 7 frames in 0.3/0.7EV steps selectable
  2. ISO Bracketing
    3 frames in 0.3/0.7/1.0EV steps selectable
  3. White Balance Bracketing
    3 frames in 2, 4, 6 selectable steps for A-B/G-M axis.
  4. Flash Bracketing
    3 frames in 0.3/0.7/1.0EV step selectable
  5. Art Filter Bracketing
    i-Enhance, Vivid, Natural, Muted, Portrait, Monotone, Custom, Art Filters, Color Creator selectable
  6. Focus Bracketing
    3 to 999 shots, focus steps adjustable from 1 to 10 (compatible with Micro Four Thirds lenses)
  7. Focus Stacking Mode
    8 shots are taken at different focus points and automatically composited together into a single image
    * Angle of view becomes slightly smaller
    * Compatible with :
    M.Zuiko Digital ED 60mm f/2.8 Macro
    M.Zuiko Digital ED 12-40mm f/2.8 PRO
    M.Zuiko Digital ED 40-150mm f/2.8 PRO
    M.Zuiko Digital ED 30mm f/3.5 Macro
    M.Zuiko Digital ED 7-14mm f/2.8 PRO
    M.Zuiko Digital ED 8mm f/1.8 Fisheye PRO
    M.Zuiko Digital ED 300mm f/4.0 IS PRO
  8. HDR (Auto Composite)
    HDR1, HDR2 (painting-like)
    ※ISO sensitivity is fixed at 200, and maximum shutter speed setting is 4 sec.
    ※Exposure compensation can be performed.
  9. Bracketing for HDR post-process
    3 or 5 frames in 2.0 or 3.0 EV steps, or 7 frames in 2.0 EV steps.
    *This sequential shooting H AE bracketing is specifically for shooting images that will be HDR-processed on a PC.

Creative Features

  1. Picture Mode
    i-Enhance, Vivid, Natural, Muted, Portrait, Monotone, Custom, e Portrait, Underwater, Color Creator, Art Filters
  2. Gradation
    Auto, Normal, High Key, Low Key [except when using i-Enhance, Underwater, Art Filters, Color Creator]
  3. Filter Effect (B&W Filter)
    Neutral, Yellow, Orange, Red, Green for Monotone
  4. Picture Tone
    Neutral, Sepia, Blue, Purple, Green for Monotone
  5. Art Filter
    (Variation / Art Effect)
    Pop Art (I, II / a.b.c.d.e)
    Soft Focus ( - / c.e)
    Pale & Light Color (I, II / a.b.c.d)
    Light Tone ( - / d)
    Grainy Film (I, II / b.c.d.f.g)
    Pin Hole (I, II, III / d.)
    Diorama ( - / d.)
    Cross Process (I, II / b.c.d.)
    Gentle Sepia ( - / a.b.c.d.f.)
    Dramatic Tone (I / b.c.d.e.f.) (II / b.c.d.e.f.g.h)
    Key Line (I, II / a.b.c.d.e.)
    Watercolor (I, II / a.b.c.d.)
    Vintage (I, II, III / a.b.c.d.e.f.i)
    Partial Color (I, II, III / a.b.c.d.e.f)
  6. Art Effect
    a. Soft Focus Effect
    b. Pin-Hole Effect
    c. White Edge Effect
    d. Frame Effect
    e. Star Light Effect
    f. Blur Effect (Top & bottom, Left & Right)
    g. B&W Effect (None, Yellow, Orange, Red, Green)
    h. Picture Tone (None, Sepia, Blue, Purple, Green)
    i. Shade Effect (Top & bottom, Left & Right)
  7. Color Ring (for partial color)
    18 color selectable
  8. Live Bulb / Live Time
    Update Interval Time - 0.5 sec – 60 sec
  9. Live Composite
    Update Interval Time / composite method – 0.5 sec – 60 sec / Lighten Mode (Bright area prioritization)
  10. Interval Shooting
    "Interval Time 1sec. - 24 Hours, Max 999 frames. Available on making Time-lapse movie automatically"
  11. Multiple Exposure (number of pictures / function)
    2 frames / Auto gain, Exposing on Recorded picture(RAW)
  12. Keystone Compensation
    Available (can be confirmed in Live View) *Horizontal and vertical compensation can be performed simultaneously.

Video / Audio Recording

  1. Video Recording Format
    MOV(MPEG-4AVC/H.264) , AVI(Motion JPEG)
  2. Movie Mode / Frame Rate / Compression Method
    4096 × 2160 (C4K) / 24p / IPB (approx. 237 Mbps)
    3840 × 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102 Mbps)
    1920 x 1080 (FHD) / 30p, 25p, 24p / ALL-I (A-I), IPB (SF, F, N)
    1920 x 1080 (FHD) / 60p, 50p / IPB (SF, F, N)
    1280 x 720 (HD) / 60p, 50p, 30p, 25p, 24p / ALL-I (A-I), IPB (SF, F, N)
    60p: 59.94 fps, 50p: 50.00 fps, 30p: 29.97 fps, 25p: 25.00 fps,
    24p: 23.98 fps, C4K 24.00 fps
    FHD ALL-I (A-I: ALL-Intra / approx. 202 Mbps),
    FHD IPB (SF: SuperFine / approx. 52 Mbps, F: Fine / approx.. 30 Mbps,
    N: Normal / approx. 18 Mbps)
    HD ALL-I (A-I:ALL-Intra / approx. 102 Mbps),
    HD IPB(SF:SuperFine / approx.26Mbps, F:Fine / approx.14Mbps、N:Normal / approx.10Mbps)
    HD (1280 x 720) / 30p
    *Frame rates may drop when particular Art Filters and Movie Effects are used.
    *Class 10 or higher SD card is recommended for shooting movies.
    *UHS-II or UHS-I U3 card is recommended for 4K,C4K,ALL-I shooting.
  3. Maximum Video Recording Time
    [MOV] Approx.. 29min [AVI] Approx. 7min*
    *Excluding when particular Art Filters are used
  4. Movie Tele-converter
    Approx. 3x (enlarges view of selected area)
  5. Art Filter Movie
    Available (Frame rates may drop when certain Art Filters are used)
  6. Movie Effect
    One-shot Echo / Multi-echo / Art Fade / Old Film
  7. Timelapse Movie
    [AVI ]
    3840×2160(4K)/ 5fps
    1920×1080(FHD)/ 5fps,10fps,15fps
    1280×720(HD)/ 5fps、10fps、15fps、30fps
  8. IS for Movie
    M-IS1*(Image sensor shift and electronic image stabilizer with multi motion IS),
    M-IS2(Image sensor shift with multi motion IS), Off
    *While using M-IS1, field of view may be affected.
  9. AE Lock
    Available
  10. Video Exposure Control
    Program AE, aperture priority AE, shutter priority AE, manual
  11. Grid Lines / Focus Peaking
    4 types of grid lines / 4 colors for focus peaking
  12. Time Code
    Rec run/free run, drop frame/non-drop frame
  13. Clips
    1, 2, 4, 8 sec.
    (Further continued shooting possible up to 16 seconds by pressing movie record button again)
  14. Quick Movie / Slow Movie
    With (this function is not available for videos with certain frame rates)
  15. Audio Recording Format
    Wave Format (Stereo linear PCM/16-bit, Sampling frequency 48kHz)
  16. Microphone / Speaker
    Built-in stereo microphone / built-in mono speaker *External stereo microphone can be attached
  17. Microphone Function
    Wind noise reduction, recording volume, microphone volume limiter
    Audio dubbing possible for still pictures (up to 30 sec.)
    *May affect audio quality.
  18. IC Recorder Linkage
    Slate Tone / Synchronized Audio Rec-Movie Rec *LS-100 compatible

Operability

  1. WiFi
    Easy Connection
    QR code setting
    Wireless Shooting
    Live View
    Power off
    Rec View
    Self timer (w/Countdown guidance, Sequential shooting, movie recording capability)
    Touch AF & Shutter
    P/A/S/M exposure modes (Live Bulb, Live Time, Live Composite)
    Sequential shooting
    Movie Recording
    Zoom
    Aperture, shutter speed, exposure, ISO sensitivity, white balance can be adjusted.*
    *When in private connection
  2. Tethered Shooting
    Via USB cable (camera can be operated by both PC or camera controls)
  3. Playback Mode
    Single-frame, information display, index display (4/9/25/100 frames), Clips, calendar, enlargement (2x - 14x), movie (with sound, FF/REW/Pause), picture rotation (auto), slideshow (with sound including BGM, Slide show effects, replaceable BGM), Light Box display
  4. Information Display
    Histogram (independent luminance / RGB available), Highlight/Shadow point warning, AF frame, Photographic information, OFF
  5. Custom Settings / Reset
    Modes C1, C2, and C3 can be accessed by mode dial
    Modes C1, C2, and C3 can be accessed via the menu
    Dial function and dial direction are customizable for both dials
  6. Button Customization
    Buttons can be customized (select from 35 functions)
    *Buttons on lenses and HLD-9 power batter holder can also be customized from the camera
    *Some buttons may have restrictions to what functions can be assigned
  7. Copyright Settings / Lens Info Settings
    Available / With (save up to 10 lenses)
  8. RAW Image Editing Functions
    Gradation auto, Monochrome, Sepia, Red-eye fix, Saturation, Resize (1280x960, 640x480, 320x240), Trimming, Aspect, e-Portrait, Image Overlay, Post recording
  9. JPEG Image Editing Functions
  10. Image Overlay
    Up to 3 RAW images
  11. Erasing Function
  12. Protect Function
  13. Menu Languages (34 selectable)
    English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai

Connectivity / Power Requirements

  1. USB Connector
    USB Type-C
  2. Remote Connector
    φ2.5Pin Jack (when using separately available RM-CB2).
  3. HDMI Connector
    Micro HDMI (type D)
  4. Flash Attachment
    Hot shoe, sync terminal
  5. Wireless LAN
    Built-in(IEEE 802.11b/g/n)
  6. MIC Input Jack
    φ3.5 stereo mini jack (plug-in power on/off)
  7. Headphone Jack
    φ3.5 stereo mini jack
  8. PC Interface
    SuperSpeed(USB3.0)
  9. TV Interface
    Not Available
  10. Battery
    BLH-1 Li-ion battery (included)
  11. Battery Status Display
    Remaining power (4 steps, %, or by-minute display), shot count, degradation
  12. Power Battery Holder
    HLD-9 power battery holder is separately available (holds one BLH-1 battery).
  13. AC Adapter
    AC-5 AC adapter is separately available (connects to power battery holder HLD-9 to provide power to camera).
  14. Sleep Mode
    Available (1/3/5 min. off)
  15. Number of Recordable Pictures
    Approx. 440 shots (using BLH-1 and Toshiba SDHC UHS-I Card Exceria with IS ON, with no flashes attached, based on CIPA test standards)
    Approx. 950 shots (using quick sleep mode, under Olympus testing conditions based on CIPA test standards)
  16. Battery Life for Movie Shooting
    Approx. 90 minutes* (under standard JEITA testing)
    Approx. 150 minutes* (when zoom and other operational functions are not used)
    *When repeatedly recording at the maximum time of 29 minutes

Weights & Dimensions / Operating Environment / Box Contents

  1. Weight
    Approx. 574g (with BLH-1 battery and Memory card, based on CIPA standards)
    Approx. 498g (body only)
  2. Dimensions
    W:134.1mm H:90.9mm D:68.9mm
    (based on CIPA standards: excludes protrusions)
  3. Environmentally Sealed
    Dust, Splash, Freezeproof
  4. Operating Temperature Range
    -10℃ ~ +40℃ (when in operation) / -20 ~ +60℃ (when stored)
  5. Operating Humidity Range
    30 - 90% (when in operation) / 10 - 90% (when stored)
  6. Box Contents
    Body, USB cable, cable clip, shoulder strap, instruction manual, warranty card, FL-LM3 flash, BLH-1 Li-ion battery , BCH-1 Li-ion battery charger

FujiFilm X-T2 Body




Model Name

FUJIFILM X-T2
Number of effective pixels 24.3 millions pixels
Image sensor 23.6mm x 15.6mm(APS-C)X-Trans CMOS III with primary color filter.
Sensor Cleaning system
Ultra Sonic Vibration
Storage media SD Card (-2G) / SDHC Card (-32G) / SDXC Card (-256G) UHS-I / UHS-II*1
File format
Still image
JPEG (Exif Ver.2.3)*2, RAW : 14bit RAW(RAF original format), RAW+JPEG
Movie
Movie File Format: MOD
Movie Video Compression: MPEG-4 AVC / H.264
Audio: Linear PCM/ Stereo sound 48KHz sampling
Number of recorded pixels L: (3:2) 6000 x 4000 / (16:9) 6000 x 3376 / (1:1) 4000 x 4000
M: (3:2) 4240 x 2832 / (16:9) 4240 x 2384 / (1:1) 2832 x 2832
S: (3:2) 3008 x 2000 / (16:9) 3008 x 1688 / (1:1) 2000 x 2000
Lens mount FUJIFILM X mount
Sensitivity Standard Output Sensitivity : AUTO1 / AUTO2 / AUTO3(up to ISO12800) / ISO200 to 12800(1/3 step)
Extended output sensitivity : ISO100 / 25600 / 51200
Exposure control TTL 256-zone metering, Multi / Spot / Average / Center Weighted
Exposure mode P(Program AE) / A(Aperture Priority AE) / S(Shutter Speed Priority AE) / M(Manual Exposure)
Exposure compensation -5.0EV - +5.0EV, 1/3EV step
(movie recording : -2.0EV - +2.0EV)
Image Stabilizer Supported with OIS type lenses
Shutter type Focal Plane Shutter
Shutter speed
Mechanical Shutter
4 sec. to 1/8000 sec.(P mode), 30 sec. to 1/8000 sec.(All modes)
Bulb mode(up to 60 min), TIME : 30 sec. to 1/8000 sec.
Electronic Shutter*3
30 sec. to 1/32000 sec.(P / A / S / M modes)
Bulb mode : 1 sec. fixed, TIME : 30 sec to 1/32000sec.
Mechanical + Electronic Shutter
4 sec. to 1/32000 sec.(P mode), 30 sec. to 1/32000 sec.(All modes)
Bulb mode(up to 60 min), TIME : 30 sec. to 1/32000 sec.
Synchronized shutter speed for flash
1/250 sec. or slower
Continuous shooting Approx. 14.0 fps [Only Electronic Shutter](JPEG: 42 frames, Lossless compression RAW: 28 frames, Uncompressed RAW: 25 frames)
Approx. 11.0fps [with VPB-XT2](JPEG: 73 frames, Lossless compression RAW: 30 frames, Uncompressed RAW: 27 frames)
Approx. 8.0fps (JPEG: 83 frames, Lossless compression RAW: 33 frames, Uncompressed RAW: 27 frames)
Approx. 5.0fps (JPEG: endless, Lossless Compression RAW: 39 frames, Uncompressed RAW: 30 frames)
  • * recordable frames depends on recording media
  • * Speed of continuous shooting depends on shooting environment and shooting frames
Auto bracketing AE Bracketing(±2EV / ±5/3EV / ±4/3EV / ±1EV / ±2/3EV / ±1/3EV)
Film simulation bracketing(Any 3 types of film simulation selectable)
Dynamic Range Bracketing (100% · 200% · 400%)
ISO sensitivity Bracketing (±1/3EV / ±2/3EV / ±1EV)
White Balance Bracketing (±1 / ±2 / ±3)
Focus
mode
Single AF / Continuous AF / MF
type
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)
AF frame selection
Single point AF: EVF / LCD: 13x7 / 25x13 (Changeable size of AF frame among 5 types),
Zone AF: 3x3 / 5x5 / 7x7 from 91 areas on 13x7 grid,
Wide/Tracking AF: (up to 18 area)
  • * AF-S : Wide
  • * AF-C : Tracking
White balance Automatic Scene recognition / Custom1~3 / Color temperature selection (2500K~10000K) /
Preset: Fine,Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White),Incandescent light, Underwater
Self-timer 10sec. / 2sec.
Interval timer shooting Yes (Setting : Interval, Number of shots, Startinng time)
Flash modes
SYNC. MODE
1ST CURTAIN / 2ND CURTAIN / AUTO FP(HSS)
FLASH MODE
TTL (FLASH AUTO / STANDARD / SLOW SYNC.) / MANUAL / COMMANDER / OFF (When EF-X8 is set)
Hot shoe Yes (Dedicated TTL Flash compatible)
Viewfinder 0.5 inch approx. 2.36 millions dots OLED Color Viewfinder Coverage of viewing area vs. capturing area: approx. 100%
Eyepoint: approx. 23mm (from the rear end of the camera's eyepiece) Diopter adjustment: -4~+2m-1
Magnification: 0.77x with 50mm lens (35mm equivalent) at infinity and diopter set to -1.0m-1
Diagonal angle of view: approx. 38° (Horizontal angle of view: approx. 31° )
Built-in eye sensor
LCD monitor 3.0 inch, aspect ratio 3:2, approx. 1,040K-dot,
Movie recording [4K (3840x2160)] 29.97p / 25p / 24p / 23.98p 100Mbps up to approx. 10min.
[Full HD (1920x1080)] 59.94p / 50p / 29.97p / 25p / 24p / 23.98p 100Mbps up to approx. 15 min.
[HD (1280x720)] 59.94p / 50p / 29.97p / 25p / 24p / 23.98p 50Mbps up to approx. 30min.
  • * For recording movies, use a card with UHS Speed Class 3 or higher.
Film Simulation mode 15 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, CLASSIC CHROME, PRO Neg.Hi, PRO Neg.Std, Black & White, Black & White+Ye Filter, Black & White+R Filter, Black & White+G Filter, Sepia, ACROS,ACROS+Ye Filter, ACROS+R Filter, ACROS+G Filter)
Dynamic range setting AUTO, 100%, 200%, 400%
ISO restriction (DR100%: No limit, DR200%: ISO400 or more, DR400%: ISO800 or more)
Advanced filter Toy camera, Miniature, Pop color, High-key, Low-key, Dynamic tone, Soft focus,Partial color (Red / Orange / Yellow / Green / Blue / Purple)
Wireless transmitter
Standard
IEEE 802.11b / g / n (standard wireless protocol)
Encryption
WEP / WPA / WPA2 mixed mode
Access mode
Infrastructure
Wireless function Geotagging, Wireless communication (Image transfer), View & Obtain Images, Remote camera shooting,PC Autosave, instax printer print
Other functions PANORAMA, AF-C CUSTOM SETTINGS, 4K MOVIE OUTPUT, SHUTTER AE, SHUTTER AF, AF-ON,Exif Print, PRINT Image Matching II, Language (35 languages including JP/EN), Time difference,Exposure preview on LCD during Manual mode, EVF brightness, EVF color, LCD brightness, LCD color,Mode effect on monitor, Customize
Terminal
Digital interface
USB3.0 (High-Speed) / micro USB terminal
  • * connectable with Remote Release RR-90 (sold separately)
HDMI output
HDMI micro connector (Type D)
Others
ø3.5mm, stereo mini connector (Microphone) / ø2.5mm, Remote Release Connector
Hot shoe, Syncronized terninal *Mechanical release : shutter button
Power supply NP-W126S Li-ion battery (included)
Dimensions 132.5mm (W) x 91.8mm (H) x 49.2mm (D) (minimum depth 35.4mm)
Weight Approx 507g(including battery and memory card)
Approx 457g(excluding battery and memory card)
Operating Temperature -10°C - 40°C
Operating Humidity 10 - 80% (no condensation)
Battery life for still images*4 Approx. 340 frames (NORMAL MODE), Approx. 1,000 frames (with VPB-XT2) When XF35mmF1.4 R is set.
Starting up period Approx 0.3sec.
  • * Fujifilm research
Accessories included Li-ion battery NP-W126S
Battery charger BC-W126
Shoe-mount flash unit EF-X8
Shoulder strap
Body cap
Strap clip
Protective cover
Clip attaching tool
Hot shoe cover
Vertical Power Booster Grip connector cover
Sync terminal cover
Owner's manual
Warranty+D66
  • *1Please see the Fujifilm website

Nikon 1 J5


  • 20.8MP CX-Format BSI CMOS Sensor
  • EXPEED 5A Image Processor
  • 3.0" 1,037k-Dot Tilting Touchscreen LCD
  • UHD 2160p/15 and Full HD 1080p/60 Video
  • Built-In Wi-Fi Connectivity with NFC
  • Hybrid AF with 105 Phase-Detection Areas
  • Up to 60 fps Shooting, 20 fps with AF-C
  • ISO 12800 and High ISO Noise Reduction
  • Sports Mode and In-Camera Time Lapse
  • 1 NIKKOR VR 10-30mm f/3.5-5.6 PD-ZOOM


Image Sensor
            Picture Angle
: Approx. 2.7x lens focal length (Nikon CX format)

            Effective Pixels (Megapixels)
:  20.8 million

            Sensor Size
: 13.2 mm x 8.8 mm


            Image Sensor Format
: CX

            Image Sensor Type
: CMOS

            Dust-reduction system
: Dust Shield

            Image Area (pixels)

  • Normal Panorama, horizontal pan (120:23 aspect ratio)

4,800 x 920
  • Normal Panorama - vertical pan (8:25 aspect ratio)

1,536 x 4,800


  • Wide Panorama - horizontal pan (240:23 aspect ratio)

9,600 x 920
  • Wide Panorama - vertical pan (4:25 aspect ratio)

1,536 x 9,600
  • Still Images (3:2 aspect ratio)

5,568 x 3,712
  • Still images (taken during movie recording; aspect ratio 3:2)

5,568 x 3,712 (1080/60p, 1080/30p)


  • Motion Snapshot (16:9 aspect ratio)

5,568 x 3,136









File System
            File Format
: Compressed 12-bit NEF (RAW)

JPEG: JPEG-Baseline compliant with fine (approx 1:4), normal (approx 1:8)

NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats

            Storage Media
: microSD (micro Secure Digital)

microSDHC

microSDXC memory cards

            Card Slot
: 1 micro secure digital

            File System
: Compliant with DCF (Design Rule for Camera File System) 2.0

EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras)

PictBridge

Lens
            Lens Aperture
: electronically controlled

Shutter
            Shutter Type
: Electronic Shutter

            Fastest Shutter Speed:
Electronic Shutter: 1/16,000 sec.

            Slowest Shutter Speed
: 30 sec.

            Flash Sync Speed
: Up to 1/60 sec.

            Bulb Shutter Setting
: Yes

            Shutter Release Modes

  • Single-frame [S] mode
  • Continuous
  • Self-timer mode
  • Interval Timer Shooting

            Frame Advance Rate
: Approx. 5, 10, 20, 30 or 60 fps

            Top Continuous Shooting Speed at full resolution
: 20 frames per second

            Self-timer
: 2, 10 sec. Timer duration electronically controlled
Exposure
            Exposure Metering System
: TTL metering using image sensor

            Metering Method
: Matrix
  • Center-weighted: Meters 4.5 mm circle in center of frame
  • Spot: Meters 2 mm circle centered on select focus area

            Exposure Modes
: Programmed Auto with flexible Program (P)
  • Shutter-Priority Auto (S)
  • Aperture-Priority Auto (A)
  • Manual (M)
  • Scene Auto Selector

            Scene Modes
:
  • Portrait
  • Landscape
  • Night Landscape
  • Night Portrait
  • Close-up
            Shooting Modes
:
  • Advanced movie mode (includes HD movie, 4K movie, time-lapse movie, slow motion, jump cut, fast motion and 4-second movie)
  • Auto Photo mode
  • Creative mode (including pop, retro, high-contrast monochrome, nostalgic sepia, HDR, easy panorama, soft, miniature effect, selective color, cross process, toy camera effect, cross screen, fisheye, skin softening, night landscape, night portrait, landscape, close-up, and portrait)
  • Motion Snapshot (16:9)
  • P programmed auto with flexible program, S shutter-priority auto, A aperture-priority auto, M manual
  • Best Moment Capture mode (includes Slow View, Active Selection, and Smart Photo Selector)

            Exposure Compensation
: ±3 EV in increments of 1/3EV

            Exposure Lock
: Luminosity locked at metered value when shutter-release button is pressed halfway

            Picture Control
:
  • Standard
  • Neutral
  • Vivid
  • Monochrome
  •
Portrait
  • Landscape
  • Selected Picture Control can be modified
  • User-customizable Settings

Sensitivity
            ISO Sensitivity
: 160 - 12800




            Active D-Lighting
: On/Off
Autofocus
            Autofocus System
:
  • Hybrid autofocus (phase detection/contrast-detect AF)
  • AF-assist illuminator

            AF-area mode
:
  • Single-point AF: 171 focus areas; the center 105 areas support phase-detection AF
  • Auto-area AF: 41 focus areas
  • Subject tracking
  • Face-priority AF

            Focus Lock
: Focus can be locked by pressing shutter-release button halfway (single AF)

            Focus Modes:
  • Auto (AF)
  • Auto AF-S/AF-C selection (AF-A)
  • Single-Servo AF (AF-S)
  • Continuous-Servo (AF-C)
  • Full-time Servo (AF-F)
  •
Manual Focus (MF)

Flash
            Built-in Flash
: Yes

            Guide Number
: 5/16 (m/ft ISO 100, 20°C/68°F) Approx.

At ISO 160, Guide Number is approx. (6.3/20.7)

            Flash Control
: i-TTL flash control using image sensor available

            Flash Mode
:
  • Auto
  • Auto with red-eye reduction
  • Fill-flash
  • Fill-flash with slow sync
  • Red-eye reduction
  • Red-eye reduction with slow sync
  • Rear curtain sync
  • Rear curtain with slow sync
  • Slow sync with red-eye reduction
  • Off

            Flash Compensation:
-3 to +1 EV in increments of 1/3 EV

            Flash-ready indicator
: Lights when built-in flash unit is fully charged

White Balance
            White Balance

  • Auto
  • Incandescent
  • Fluorescent
  • Direct Sunlight
  • Flash
  • Cloudy
  • Shade
  • Preset Manual
  • All except preset manual with fine tuning


Movie
            Movie Metering
: TTL exposure metering using main image sensor

            Movie Metering Method
: Matrix

Center-weighted: Meters 4.5 mm circle in center of frame

Spot: Meters 2 mm circle centered on select focus area

            Movie File Format
: MOV

            Movie Video Compression
: H.264/MPEG-4 Advanced Video Coding

            Movie Audio recording format
: PCM

            Movie Audio recording device
: Built-in stereo microphone; sensitivity adjustable

            Movie
:
  • HD: 1920 x 1080/60p
  • HD: 1920 x 1080/30p
  • HD: 1280 x 720/60p
  • HD: 1280 x 720/30p
  • Slow-motion: 1280 x 720/120 fps
  • Slow-motion: 800 x 296/400 fps
  • Slow-motion: 400 x 144/1200 fps
  • 4K movies: 3840 x 2160/15p (14.99 fps)
  • Audio file format: ACC
  • Movie file format: MOV

Monitor
            Monitor Size
: 3.0 in. diagonal

            Monitor Resolution
: 1,037,000 Dots

            Monitor Type
: Tilting TFT-LCD with brightness adjustment

Interface
            Interface
: USB: Hi-speed USB

HDMI output: Type D mini-pin HDMI connector



Power
            Battery / Batteries
: EN-EL24 Lithium-ion Battery

            Battery Life (shots per charge)
: 250 shots (CIPA)

Movies: Approx. 60 minutes (1080/30p)


            AC Adapter
: EH-5b AC Adapter

Requires EP-5F Power Supply Connector (available separately)

Miscellaneous
            Tripod Socket
: 1/4 in.

            Approx. Dimensions (Width x Height x Depth)
: 3.9 in. (98.3 mm) x 2.4 in. (59.7 mm) x 1.3 in. (31.5 mm)

Excluding projections.







            Approx. Weight
: 8.2 oz. (231 g)

camera body only



            Operating Environment
: 32 to 104°F (0 to 40°C)

Less than 85% humidity (no condensation)

Sony Alpha NEX A6000 Body



Specifications

  • Lens Compatibility: Sony E-mount, (Sony A-mount, Minolta/Konica Minolta Maxxum lenses confirmed via optional LA-EA adaptor)
  • Lens Mount: Sony E-mount
  • Camera Type: Mirrorless DSLR
Imaging Sensor
  • Imaging Sensor: Exmor™ APS HD CMOS sensor (23.5 X 15.6mm)
  • Processor: BIONZ X™ image processor
  • Anti Dust: Charge protection coating on Optical Filter and ultrasonic vibration mechanism
  • Pixel Gross: Approx. 24.7 megapixels
  • Effective Picture Resolution: Approx. 24.3 megapixels
  • Focal Length Conversion Factor: 1.5x
  • Color Filter System: RGB primary color
Recording
  • Media Type: SD, SDHC and SDXC memory card Memory Stick PRO Duo™/Pro-HG Duo™ media
  • Color Space: Still: sRGB standard (with sYCC gamut), Adobe RGB Movie: xvYCC standard (x.v.Color™ when connected via HDMI cable) Compatible with TRILUMINOS™ color
  • Still Image Mode: RAW, RAW & JPEG, JPEG Fine, JPEG Standard
  • Still Image Max Effective Resolution: 24.3M pixels (approx.)
  • Still Image Size 16:9: L: 6000 x 3376 (20M) M: 4240 x 2400 (10M) S: 3008 x 1688 (5.1M)
  • Still Image Size 3:2: L: 6000 x 4000 (24M) M: 4240 x 2832 (12M) S: 3008 x 2000 (6.0M)
  • Panorama Still Image Size: Wide: Horizontal 23M (12,416 x 1,856), Wide: Vertical 12M (5,536 x 2,160), Standard: Horizontal 15M (8,192 x 1,856), Standard: Vertical 8.4M (3,872 x 2,160)
  • Video Format: AVCHD Ver. 2.0 / MP4 (MPEG-4 AVC (H.264))
  • Video Mode: AVCHD: PS - 1920x1080/60p @28Mbps FX - 1920x1080/60i @24Mbps FH - 1920x1080/60i @17Mbps FX - 1920x1080/24p @24Mbps FH - 1920x1080/24p @17Mbps MP4: HD - 1440x1080/30fps @12Mbps, VGA - 640x480/30fps @3Mbps
  • Audio Format: Dolby Digital (AC-3) / MP4: MPEG-4 AAC-LC, 2ch
  • Still Image File Format: JPEG (DCF Ver. 2.0, Exif Ver.2.3, MPF Baseline compliant), RAW (Sony ARW 2.3 format)
Viewfinder
  • Type: 0.39" (1.0 cm) OLED electronic viewfinder (color), 1,440,000 dots
  • Diopter Adjustment: -4.0 to +3.0m-1
  • Field of View: 100% (approx. 33° vewing angle)
  • Magnification: Approx. 1.07x (35mm camera equivalent: Approx. 0.70x) with 50mm lens at infinity, -1m-1 diopter
LCD Display
  • LCD Type: 3.0" TFT LCD (921,600 dots)
  • Angle Adjustment: Tilt up by approx. 90 degrees, down by approx. 45 degrees
  • Brightness Control: Auto, Manual (5 steps between -2 and +2), Sunny Weather mode
  • Coverage: 100%
  • Live View: Continuous Live View
  • Real-time image adjustment display: Yes (On/Off)
  • Histogram: Yes (On/Off)
  • Peaking: Yes (Level setting: High/Mid/Low/Off, Color: White/Red/Yellow)
  • Grid Display: Yes (Rule of Thirds, Square 4x6, Diagonal & Square 4x4, Off)
  • Customization: Graphic Display, Display All Info, No Disp. Info, Histogram, For viewfinder
  • Zebra: Yes (levels 70, ,75, 80, 85, 90, 95, 10, 100+, off)
Focus Control
  • Focus System: Fast Hybrid AF(phase-detection AF/contrast-detection AF)
  • Focus Points: 179 points (phase-detection AF) 25 points (contrast-detection AF)
  • AF Modes: AF-A (Automatic AF), AF-S (Single-shot AF), AF-C ( Continuous AF), DMF (Direct Manual Focus), Manual Focus
  • Focus Area: Wide (179 points phase-detection AF, 25 points contrast-detection AF), Zone, Center-weighted, Flexible Spot (Small, Medium, Large)
  • Focus Sensitivity: EV0 to EV20 (ISO100 equivalent with F2.8 lens attached)
  • Focus Features: Lock-on AF, Eye AF, Predictive control, Focus lock, AF illuminator (with Built-in LED type) Approx. range; 0.3- approx. 3.0m (with E PZ 16-50mm F3.5-5.6 OSS lens attached)
  • AF Illuminator: Built-in LED, Range: approx. 3' 4” - 9' 9” (0.3m-3.0m)
Exposure System
  • Picture Effect(s): 13 modes: Posterization (Color, B/W), Pop Color, Retro Photo, Partial Color (R, G, B, Y), High Contrast Monochrome, Toy Camera, Soft High-key, Soft Focus, HDR Painting, Rich-tone Monochrome, Miniature, Watercolor, Illustration
  • Auto Exposure Lock: Yes with AE lock button (AE also locked when shuter button is halfway: Auto/On/Off selectable)
  • Color Temperature: 2500 to 9900K & Color Filter (G7 to M7: 15-steps, A7 to B7: 15-steps)
  • Creative Style: Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn leaves, Black & White, Sepia, Style Box(1-6), (Contrast (-3 to +3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3 steps))
  • D-Range Optimizer: Off, Dynamic Range Optimizer (Auto/Level (1-5)), Auto High Dynamic Range (Auto Exposure Difference, Exposure Difference Level (1-6 EV, 1.0 EV step))
  • Exposure Bracketing: Cont. Bracket: x3 or x5 image in 1/3 EV, 1/2 EV, 2/3 EV, 1.0 EV, 2.0 EV, 3.0 EV increments, Single Bracket: x3 or x5 image in 1/3 EV, 1/2 EV, 2/3 EV, 1.0 EV, 2.0 EV, 3.0 EV increments, White Balance Bracket: Low (LO), high (HI) DRO Balance Bracket: Low (LO), high (HI)
  • Exposure Compensation: Still images: ±5.0 EV(1/3EV, 1/2EV steps selectable) Movies: ±2.0 EV(1/3EV steps selectable)
  • Exposure Settings: iAUTO, Superior Auto, Programmed AE (P), Aperture priority (A), Shutter priority (S), Manual (M), Memoru Recal (MR), Sweep Panorama, Scene Selection, Movie
  • ISO: Stills: ISO 100-25,600 selectable in 1/3 EV steps, Still Auto: ISO 100-25,000 selectable upper and lower limit, Movies: ISO 100-12,800 selectable in 1 EV steps, Movie Auto ISO 200-12,800 selectable upper and lower limit
  • Metering: Advanced 1200-zone evaluative metering
  • Metering Modes: Multi-segment, Center-weighted, Spot
  • Metering Sensitivity: EV 0 to 20 EV (at ISO100 equivalent, with F2.8 lens attached)
  • Noise Reduction: Long exposure NR: On/Off, available at shutter speeds longer than 1 sec., High ISO NR: Normal/Low/Off selectable, Multi-frame NR: Auto/ISO 100 to 51200
  • Scene Mode(s): Portrait, Landscape, Macro, Sports Action, Sunset, Night Portrait, Night View, Hand-held Twilight, Anti Motion Blur
  • White Balance Mode: Auto WB, Daylight, Shade, Cloudy, Incandescent, Fluorescent (Warm White, Cool White, Day White, Daylight), Flash, Color Temperature (2500 to 9900K) & Color Temp. Filter (G7 to M7: 15-steps, A7 to B7: 15-steps), Custom, Underwater Auto
Drive System
  • Continuous Shooting Speed: Continuous mode: 11fps (hi), 6fps (mid), 2.5fps (low) with AF
  • Drive Mode: Single Shot, Continuous shooting (Hi/Mid/Lo selectable), Self-timer (10/2 sec delay selectable), Self-timer (Cont.) (with 10 sec delay 3/5 exposures selectable), Bracket: Cont. / Single/ WB / DRO
  • Flash Sync Speed: 1/160 sec.
  • Self-timer: 2-sec. or 10-sec. delay
  • Shutter Speeds: Still images: 1/4000 to 30 sec., Bulb Movies: 1/4000 to 1/4 (in 1/3 step), up to 1/60 in AUTO mode, up to 1/30 in Auto Slow Shutter mode
  • Shutter Type: Electronically-controlled, vertical-traverse, focal-plane shutter
Flash
  • Flash Bracketing: 1/3, 1/2, 2/3, 1.0, 2.0, 3.0 EV steps, 3/5 frames (1.0/2.0/3.0 EV : only 3 frames) selectable
  • Flash Compensation: ±3.0 EV (switchable between 1/3 and 1/2 EV steps)
  • Flash Coverage: 16mm (focal length printed on lens body)
  • Flash Metering System: Pre-flash TTL
  • Flash Modes: Flash off, Auto flash, Fill-flash, Slow Sync., Rear Sync, Wireless, Red-eye reduction (On/Off)
  • Flash Type: Built-in, Pop-up
  • Guide Number: 6 (in meters at ISO 100)
Interface
  • Remote Commander: Yes, via optional RM-VPR1
  • Accessory Shoe: MI (Multi-interface shoe), Standard ISO 518:2006 design with multi-pin configuration for additional accessories
  • A/V Remote Terminal: Yes, via optional RM-DSLR2 wired Multi-terminal remote
  • DC IN: Yes via optional AC-PW20AM (sold separately)
  • HD Output: HDMI micro connector (Type-D) BRAVIA Sync (link menu) PhotoTV HD 4K Still Image playback via HDMI to compatible 4K TV
  • HDMI Terminal: HDMI® micro connector (Type-D)
  • Memory Card Slot: Dual compatibility slot: Memory Stick PRO Duo™/Pro-HG Duo™/PRO-HG HX Duo™ media - SD, SDHC and SDXC memory card
  • NFC: Yes (NFC Forum Type 3 Tag compatible, One-touch remote, One-touch sharing)
  • Tripod Mount: Yes (1/4" diameter, 20 threads per inch)
  • USB Port(s): USB 2.0 Hi-speed (mass-storage, MTP)
  • Wi-Fi: Yes(Wi-Fi Compatible, IEEE 802.11b/g/n(2.4GHz band) )
Weights and Measurements
  • Dimensions (Approx.): Approx. 4-3/4" x 2-7/8" x 1-13/16" (120mm x 67mm x 45mm)
  • Weight (Approx.): Approx. 10.1 oz (285 g) (body only) Approx. 12.1 oz (344 g) (with battery and memory stick)
Power
  • Battery Type: InfoLITHIUM® NP-FW50 (7.2V)
  • Battery Capacity: 1080 mAh
  • Number of Still Images: Approx. 310 shots (Viewfinder), Approx. 360 shots (LCD monitor) (CIPA standard)
  • External Power: AC Adaptor AC-PW20
  • Power Consumption (in LCD Screen Operation): Approx. 2.4W (still images, with E PZ 16-50mm F3.5-5.6 OSS lens)
  • Power Consumption (in View Finder Operation): Approx. 2.8W (still images, with E PZ 16-50mm F3.5-5.6 OSS lens)
Software
  • Supplied Software: Supplied Software: PlayMemories Home, Image Data Converter Version 4
  • Operating System Compatibility: supported, Windows Image Mastering API(IMAPI) Ver.2.0 or later is required to use the function for creating discs.) Windows Vista® SP2 (Starter Edition is not supported) Windows® 7 SP1; Windows® 8; Mac OS X (10.6-10.8)
Service and Warranty Information
  • Limited Warranty Term: 1 Year Parts & Labor

In The Box

  • Rechargeable Battery (NP-FW50)
  • AC Adaptor (AC-UB10)
  • Shoulder strap
  • Body cap
  • Eyepiece cup
  • Micro USB cable

Saturday, 24 June 2017

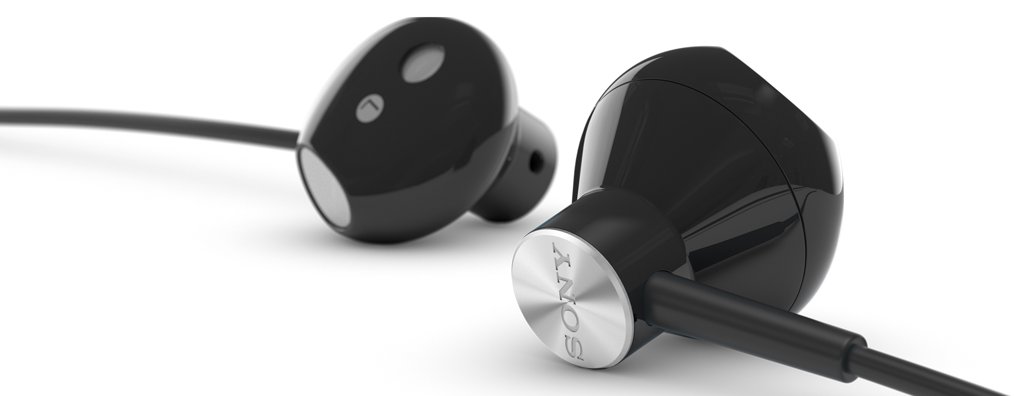

Sony Stereo Headset STH32


Android™
iOS™1
Approx. 15.3 g
Cable Length: 1.2m
Water resistant IPX572
  • Black
  • White
  • Blue
  • Pink
  • Volume +/-1
  • Multi function key (Answer/end call, Play/pause/skip/back music, Activate voice assist function of Google Now or Siri)
  • Microphone
    • 3.5mm audio Jack(Stereo mini/4-pole)
    • Smartphone, tablet, laptop, music player or other device with 3.5 mm audio output.
    • <0.5% (100Hz - 10000Hz @ 1mW)
    • 9.2 mm dynamic
    • 18 Ohm
    • 20Hz – 20000Hz
    • ECM
  • Stereo Headset
  • Headphone cable clip
  • Leaflet
  • Xperia™ XA1 Ultra

    Specifications

    4GB RAM
    32GB / 64GB eMMC internal memory1
    microSDXC support (up to 256GB)
    Single SIM
    Dual SIM
    Nano SIM
    Google Android™ 7.0 (Nougat)
    MediaTek Helio P20 Octa Core 64bit (Quad Core 2.3GHz + Quad Core 1.6GHz)
    2700mAh
    Qnovo Adaptive Charging
    STAMINA Mode
    Quick Charging (MediaTek Pump Express Plus 2.0)
    Corning® Gorilla® Glass
    188g
    165 x 79 x 8.1mm
    Gold
    White
    Black
    Pink
    15.24 cm full HD 1080p
    Image Enhance Technology
    23MP
    1/2.3” Exmor RS™ for mobile image sensor
    Hybrid Autofocus
    Quick Launch & Capture
    Low-light photo: ISO 6400
    24mm wide-angle F2.0 lens
    5x Clear Image Zoom
    SteadyShot™
    16MP
    1/2.6" Exmor R for mobile™ for mobile image sensor
    Low-light photo: up to ISO 6400
    23mm wide-angle lens F2.0
    OIS (Optical Image Stabiliser)
    Smart Selfie Flash
    GSM GPRS/EDGE (2G)
    UMTS HSPA+ (3G)
    LTE (4G) Cat4/Cat62
    A-GNSS (GPS + GLONASS)2
    WiFi Miracast
    Bluetooth® 4.2 wireless technology
    Google Cast
    NFC
    USB Type-C™
    SmartAmp
    Clear Audio+
    Stereo Recording
    Bluetooth® 4.2 wireless technology, aptX / A2DP
    Music
    Album
    Video
    Movie Creator
    Spotify
    News
    What's New
    Sound Photo
    AR effect
    Style Cover Stand SCSG40
    Quick Charger UCH12W
    Bluetooth® Headset with Speaker SBH56

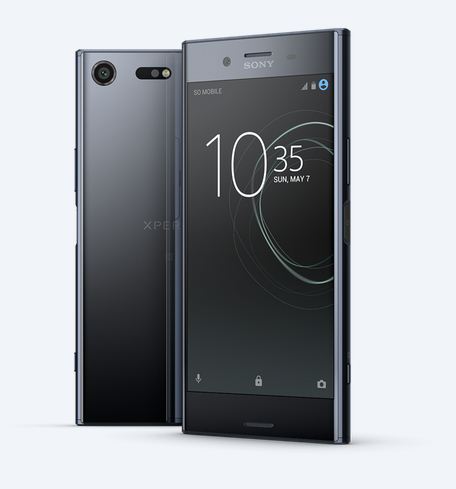

    Xperia™ XZ Premium


    Specifications

    4GB RAM
    64GB (Single SIM)/64GB (Dual SIM) UFS internal memory1
    microSDXC support (up to 256GB)
    Single SIM
    Dual SIM
    Nano SIM
    Google Android™ 7.1 (Nougat)
    Qualcomm® Snapdragon™ 835 processor
    3230mAh
    Smart Stamina
    Qnovo Adaptive Charging
    Battery Care
    STAMINA Mode
    Qualcomm® Quick Charge 3.0
    Water resistant (IP65/68)2
    Corning® Gorilla® Glass 5 on front and back
    191g
    156 x 77 x 7.9 mm
    Luminous Chrome
    Deepsea Black
    13.97 cm 4K HDR Display
    TRILUMINOS™ Display for mobile
    X-Reality™ for mobile
    Dynamic Contrast Enhancer
    sRGB 138% spectrum compared to standard videos (SDR)
    Corning® Gorilla® Glass 5 on front and back
    19MP Motion Eye™ Camera
    1/2.3” Exmor RS™ for mobile memory stacked sensor
    Pixel Pitch 1.22μm
    Triple image sensing technology
    Predictive Hybrid Autofocus
    960 fps Super slow motion videos
    Predictive Capture
    0.5 sec Quick Launch & Capture
    Anti-distortion shutter
    Low-light photo: ISO 12800 / 4000 (Video)
    HDR Photo
    25mm wide Sony’s award-winning G Lens F2.0
    x8 Digital Zoom
    BIONZ™ for mobile image-processing engine
    SteadyShot™ with Intelligent Active Mode (5-axis stablization)
    4K recording
    13MP
    1/3.06” Exmor RS™ for mobile image sensor
    22mm Wide-angle lens F2.0
    ISO 6400 (Photo) / 1600 (Video)
    SteadyShot™ with Intelligent Active Mode (5-axis stablization)
    GSM GPRS/EDGE (2G)
    UMTS HSPA+ (3G)
    LTE (4G) Cat16 with Gigabit-class speeds3
    A-GNSS (GPS + GLONASS)3
    WiFi Miracast
    Bluetooth® 5.0 wireless technology
    DLNA Certified®
    Google Cast
    NFC
    USB 3.1 Gen 14 /USB Type-C™
    Fast and secure unlock
    High-Resolution Audio (LPCM, FLAC, ALAC, DSD)
    DSEE HX™
    LDAC
    Digital Noise Cancelling
    Clear Audio+
    Stereo speaker with S-Force Front Surround
    Stereo Recording
    PS4 Remote Play
    Music
    Album
    Video
    Movie Creator
    Spotify
    News
    What's New
    Sound Photo
    AR effect
    Style Cover Stand SCSG10
    Quick Charger UCH12W
    Charging Dock DK60
    Hi-res headset MDR-NC750
    Bluetooth(R) Headset with Speaker SBH56
